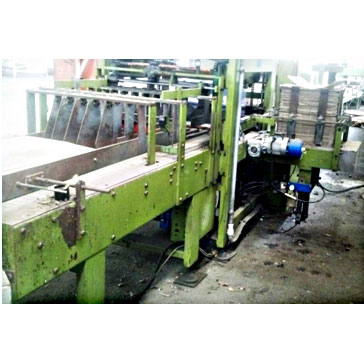

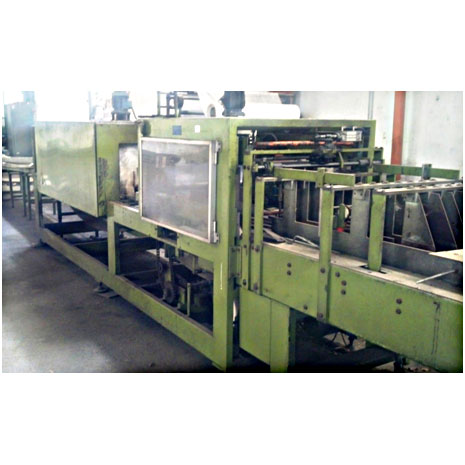

Machine able to load the cans or jars on a flat layer in carton and wrap it’s with shrink film. The flat layers are picked-up from a high capacity blank magazine and positioned under the containers. The film wrapping section works with welding bars, then in the shrink tunnel the pack reach the final presentation. At the exit of the tunnel conveyor a cooling system gives the necessary consistency to the pack to run on the out-feed conveyors. The machine can pack the containers with or without insertion of the flat layer.
The machine is suitable to make pack with cans or jars of various diameter and height, included in the working range of the same; to obtain this is necessary move the container guides in the proper position and in some cases will be necessary remove some guides. Machine in working conditions.
Multilane infeed unit / Product separation section / Flat layers magazine section / Containers on flat layer positioning device / Film unwinding, feeding, cutting and wrapping section / Shrink tunnel / Control panel
Machine speed: 12 packs per minute
Total Electric Power: 30 kW
Voltage: 400V – 3 Phase / 50 Hz + N + G
Air consumption: 100 Nl/min at 6 bar
