Product Description
Rotating piston filler particularly suitable to fill thick or semi-thick food products as jam, sauces, fruit juice with pulp, ketchup, mayonnaise, honey, concentrated pulp, tomato paste, baby-food, patè, mustard, etc…
The machine is built-up in stainless steel AISI 304 while all parts in contact with the food product, are made of stainless steel AISI 316 or special plastic material food grade.

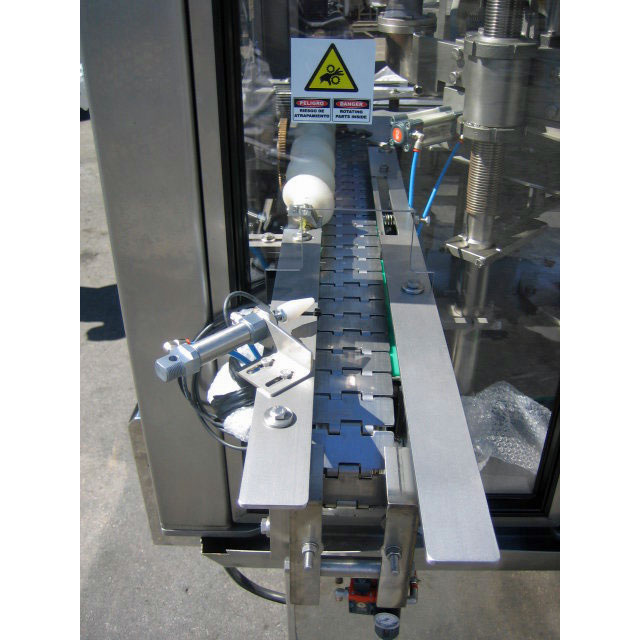

The transportation/feeding of the empty containers is obtained by means of a conveyor belt with stainless steel table-top chain.

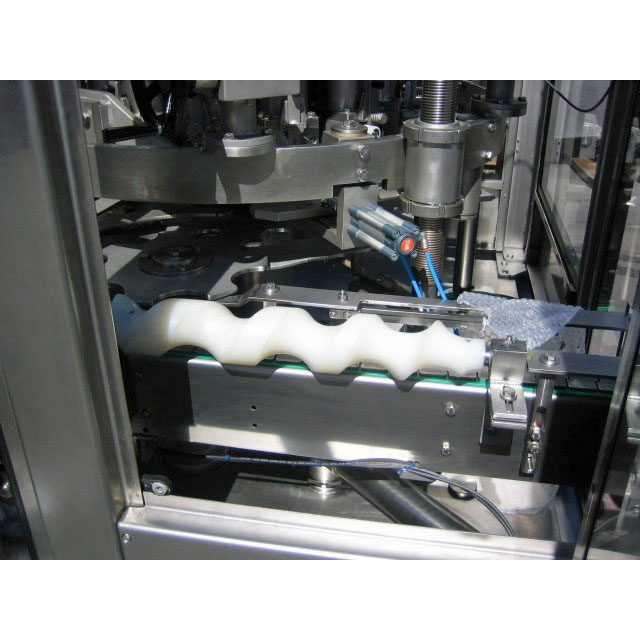

Double profiled screw feeder in entry for containers orientation and synchronization
Can stop set on the containers entry conveyor belt synchronized with the screw feeder

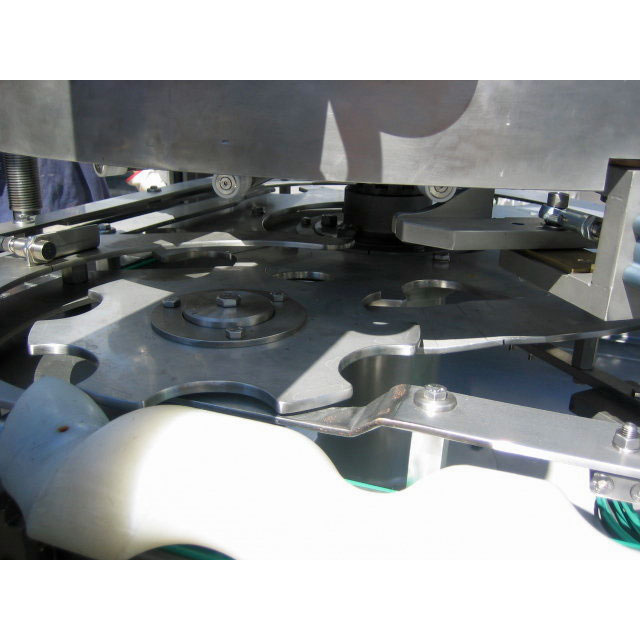

Profiled entry star wheel and guide

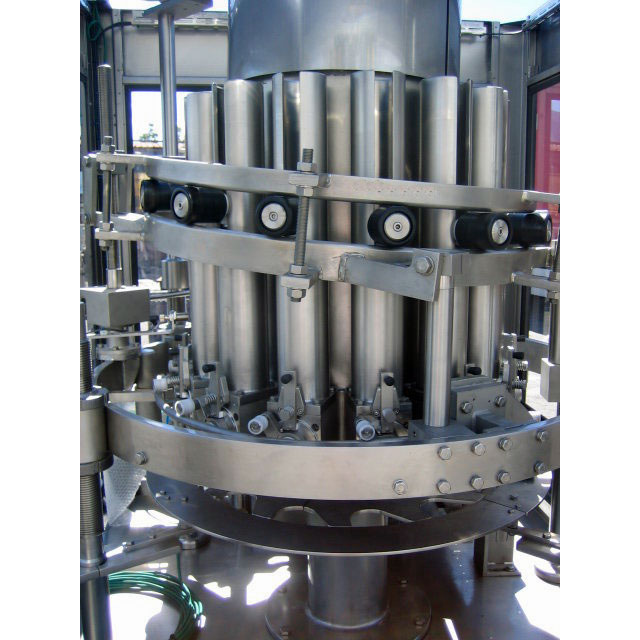

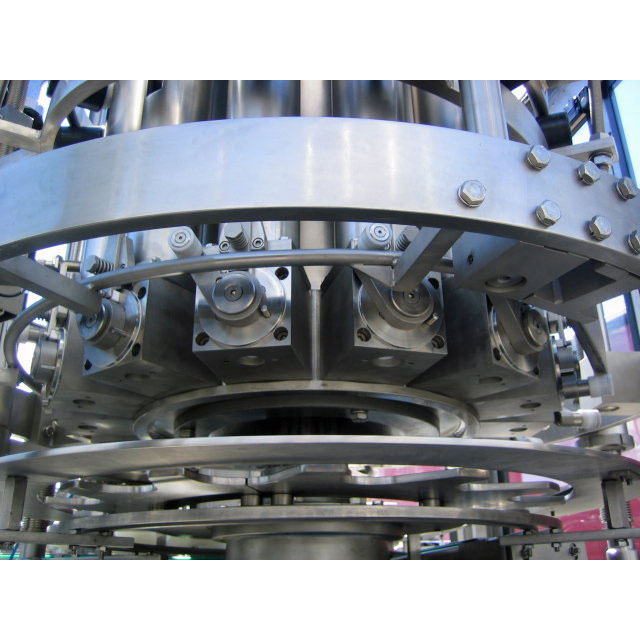

The cylinder-piston units and the outside body female of the valves are made of stainless steel AISI 316, while the inlet shutters are made of special plastic material which is suitable to come into contact with food product, approval by FDA.
Product tank in stainless steel; the level control inside the product tank is obtained by means of a capacitive probe.
On the machine is also installed an electro-pneumatic device “No Container No Fill” in order to close the product valve cock when there is no container under the product nozzle.
The motorization is given by a gear- box controlled by electronic inverter which allows to obtain an optimum speed adjustment and a more gradual start and stop of the machine.
Outlet transport with independent motorization, transport in stainless steel chain.
PTO for coupling with seamer 1 revolution = 1 second
The switchboard is made of stainless steel, is provided by low voltage controls (24V), containing the PLC for the control of the machine operation, electronic speed controller INVERTER, tachometer, piece counter, display operator interface.

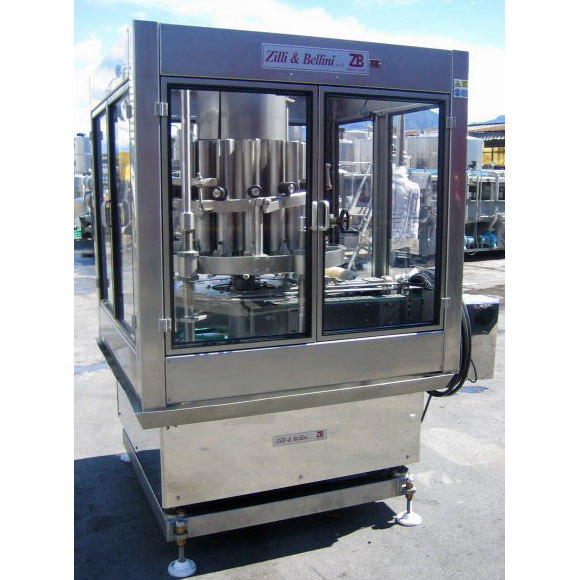

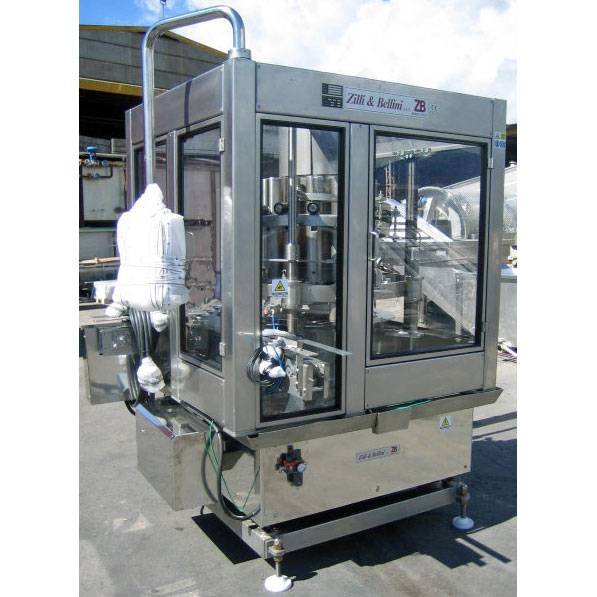

The machine is provided with outside accident safeguards made of stainless steel and polycarbonate glasses and with standard stopping micro-switches.
Technical Features:
Filling pistons : 14 units
Rotation : counter clockwise
Piston diameter : 73mm
Volume filling range : Max. 960cc
Container diameter : Min. 52mm Max. 115mm
Container pitch : 134.63
Production Capacity : up to 250cpm depend from the product characteristics (density, viscosity,etc.)
Installed cans size : d73mm 1/2kg 3-pieces tin cans
Electric power installed : 3kW (3 x 400V. / 50Hz.)
Air consumption : 20Nl/1’ at 4bar
