Product Description
The line is studied for satisfy the vacuum packing needs of small to medium size food processing and food preparation companies and provides an optimal packaging result according to the latest market requirements.
MODE OF CONTINUOUS OPERATION
• After the machine is manually loaded the cover will close automatically and start the vacuum cycle.
• After the vacuum cycle the cover will automatically swing to the other working platform
• while the packaged products will automatically be discharged on the conveyor belt and be transported into the immersion tank which will automatically start the short immersion cycle.
• After the immersion the product will be discharged on the exit table.
• For regular vacuum bags the immersion tank is not necessary.
STANDARD
• Rugged all stainless steel construction
• IP65 splash water proof controls
• Pneumatic automatic movement of the vacuum chamber
• Manual, semi-automatic or automatic operation
• Sensor controlled 10 program digital vacuum control unit
• Special cleaning position
• Conveyor belt automatic controlled by the movement of the vacuum chamber and the immersion tank
• Immersion tank has automatic water level and temperature control

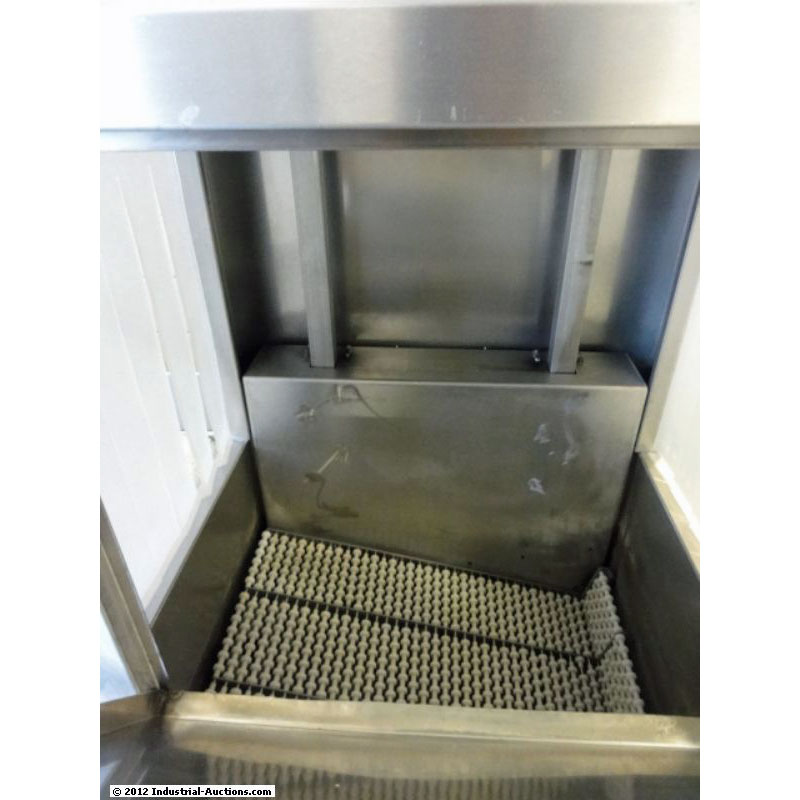

• The immersion rack can be removed to clean the immersion tank

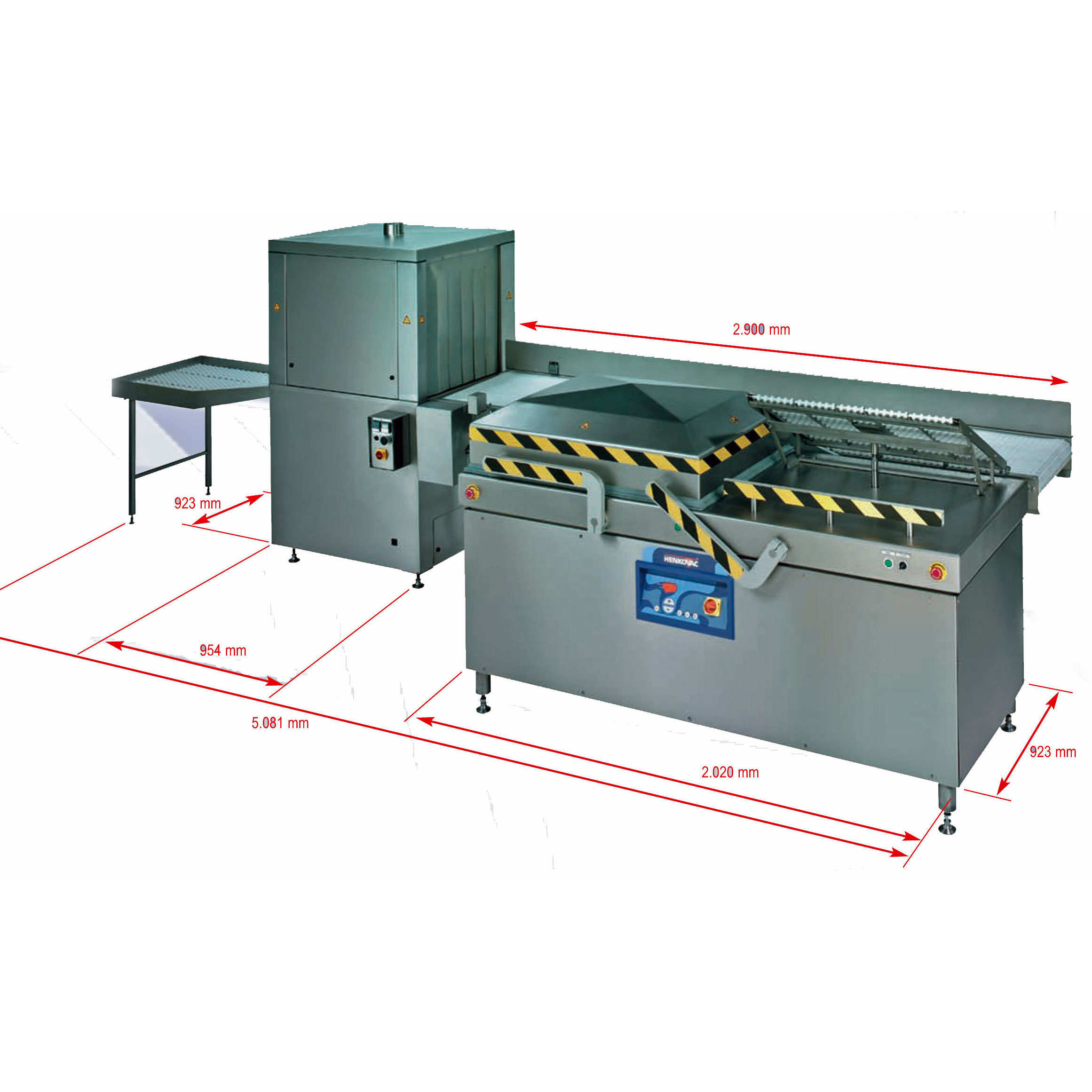

Technical features of the automatic packaging line compose of:
Automatic double chamber sealing machine A5000L
Seal length : 2x810mm
Work height : 910mm
Useful chamber size (WxDxH) : 810x680x200mm
Outside dimensions (WxDxH) : 2020x923x1230mm
Weight : 525kg
Standard voltage : 400-3-50Hz
Power consumption : 5.5kW
Air pressure : 6bar 100ltr. p/m
Conveyor belt CS-HV
Length : 2900mm
Width : 630mm
Height : 910mm
Dimensions (LxWxH) : 2900x630x910mm
Weight : 160kg
Standard voltage : 220-2-50Hz
Power consumption : 800W
Immersion tank ADT–HV 60/80
Water content : 175l
Immersion platform : 800x560mm
Immersion depth : 250mm
Dimensions (WxDxH) : 954x920x1698mm
Weight : 255kg
Standard voltage : 400-3-50Hz
Power consumption : 18kW
Air pressure : 6bar 100ltr. p/m
Exit table
Dimensions (LxWxH) : 1265x630x850mm
