Product Description

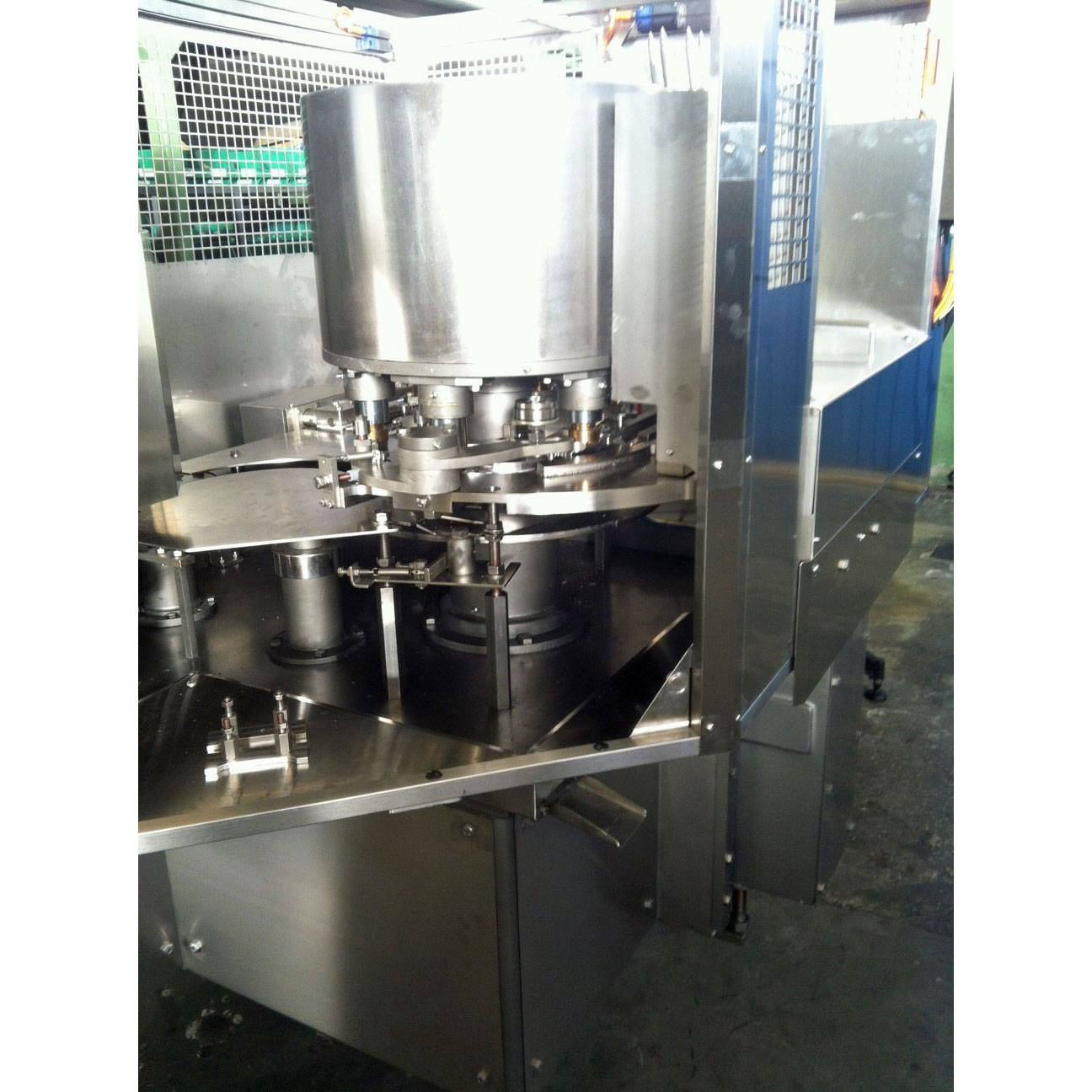

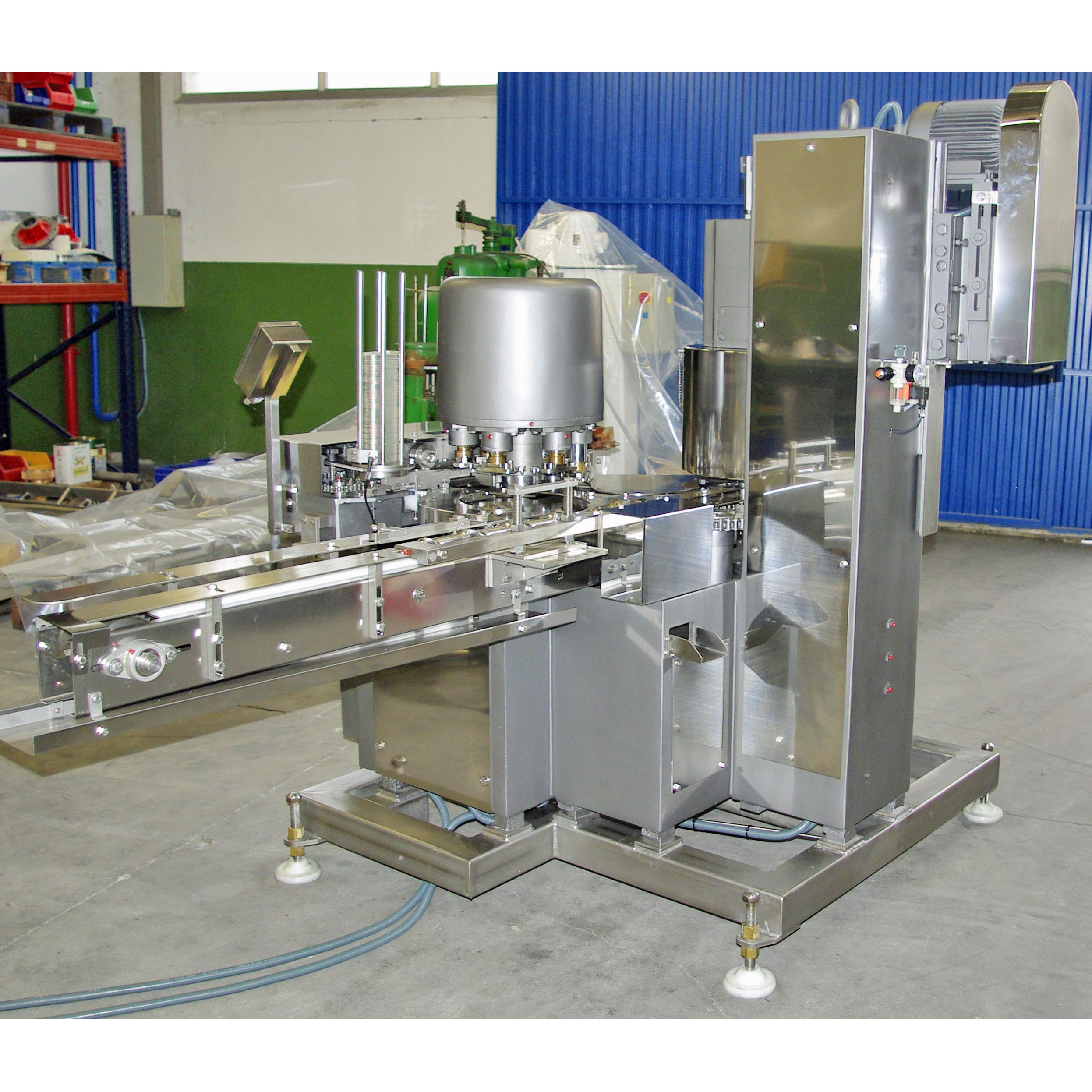

Machine completely overhauled, equipped with a set of parts and accessories for the seaming of irregular cans with dimensions: 93x47x57/91mm volume 197 / 343ml
Technical features:

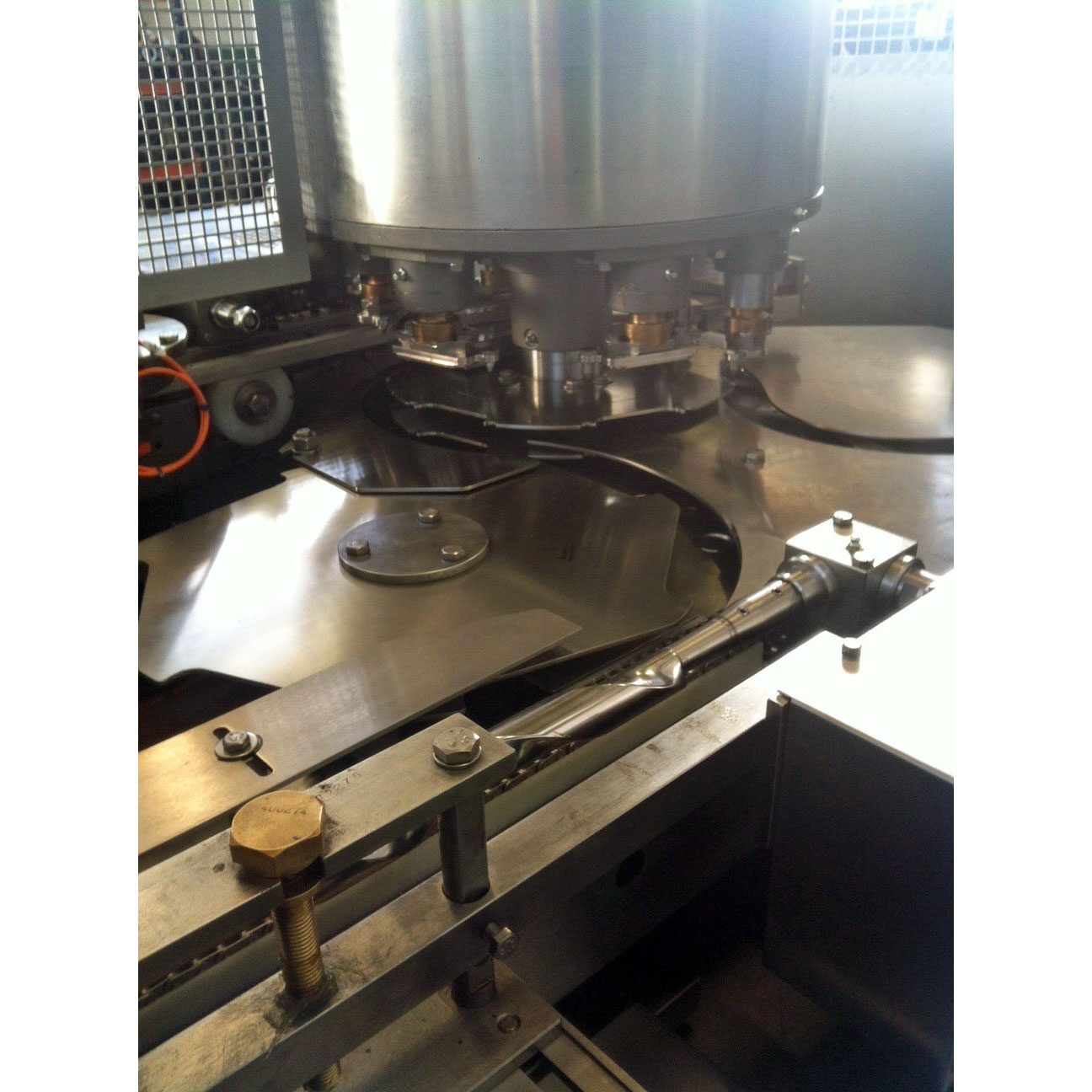

Cans feeder with synchronization timing screw
Cover (lids) feeder with fingers chain
Rotary clincher with 6 stations for better handling of overfilled cans
Clinching chucks with magnets for tin plate cover
Clinching centerers to avoid deformation of overfilled cans
One (1) seaming head
Fast attack seaming technology (5 turns/seam)
Pre-curling roll to event the covers flange specially in the curve zones
4 seaming rolls: (1) pre-curling, (1) 1st seaming operation and (2) 2nd seaming operation
Electronic speed variator and PLC for control & synchronization in the line
Safety guards according to CE regulations
Technical data:
Maximum diagonal cans size : 160mm
Minimum width cans size : 45mm
Max Speed : up to 100cpm (depend from cans size)
Dimensions : 2765x1810xh.2325mm
